Grip & TURN (QC6)
Product number
impact_200-3m_fc1-650-75ds_qc6

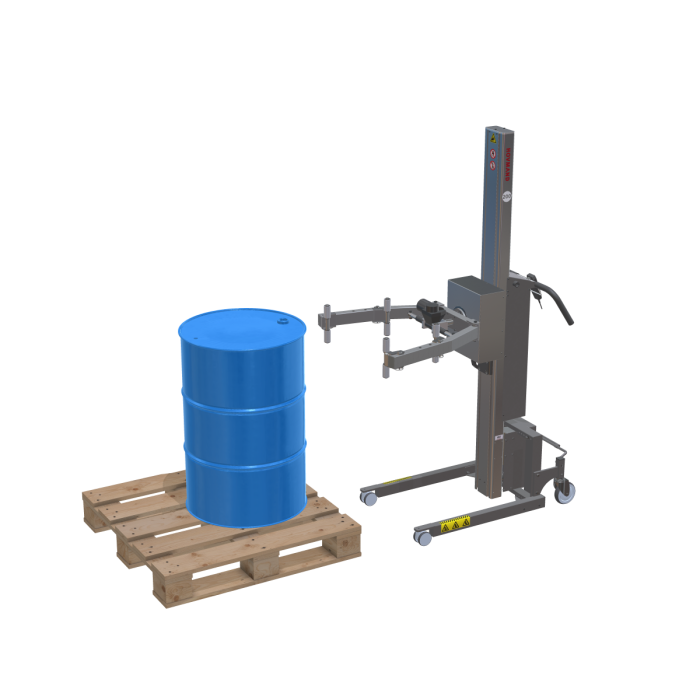

The Grip & Turn tool functions as electrically operated arm grippers. The arm grippers can be fitted with a wide variety of grippers, depending on the item’s surface and material. The arm grippers are mounted on an electric turning unit which can rotate the item +/- 180 degrees. Effortlessly grip, lift and turn cylindrical items made of various materials. Model QC6 can lift up to 100 kg. Model QC3 can lift up to 60 kg and EG6 up to 250 kg.
Specification
Tool type:
Clamp and turn
Lifting capacity:
200.00 kg
Lifts per charge:
80
Lifting height:
1,786.00 mm
Total width:
599.00 mm
Total height:
1,991.00 mm
Total length:
1,138.00 mm
Details
If the items are standing closely together, make room for the arm grippers by pushing the items, if necessary.
In addition to a wide selection of various grippers, the tool can also be fitted with customised grippers. The arm grippers can also be custom-made for special items and needs.
In addition to a wide selection of various grippers, the tool can also be fitted with customised grippers. The arm grippers can also be custom-made for special items and needs.
