REEL HANDLER (MRP3)

Product number
impact_130m_fc1-500-75ds_mrp3-longrolls

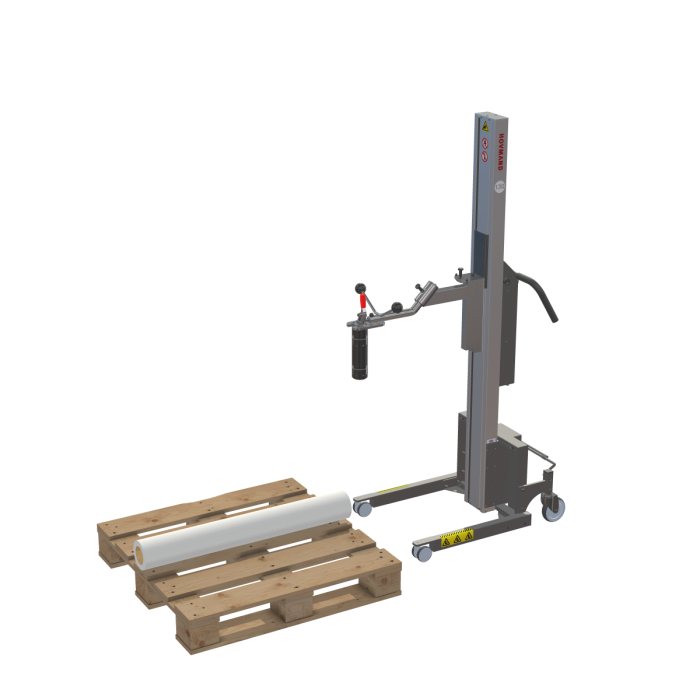

A Reel Handler is a tube-shaped fixating tool that fixates and carries the reel by its core. A Reel Handler tips the reel 90 degrees by manually turning the Reel Handler’s handle.A lifter with a reel handler lifts almost all types of reels, even those that are packed closely together on a pallet.

Specification

Tool type Tool type:
Reel manipulator
Lifting capacity Lifting capacity:
80.00 kg
Lifts per charge Lifts per charge:
80
Lifting height Lifting height:
1,583.00 mm
Total width Total width:
570.00 mm
Total height Total height:
1,924.00 mm
Total length Total length:
1,020.00 mm
Customize REEL HANDLER (MRP3)
1 x IMPACT 130M;
1 x FC1-500-75ds;
1 x MRP3;

* Required Fields

Your Customization
Lift the reel and tip it 90 degrees, from vertical to horizontal, by manually turning the handle.

Position the reel next to the packing machine’s boom, release the lock and push the reel over onto the packing machine.

Your production process is new
REEL HANDLER (MRP3)

In stock

Summary

    Details

    Cannot be used if your packing machine’s boom is removable.
    A lifter that can do just about everything with reels up to 50 kg. It even picks up reels from a vertical position – even if they are packed closely together. This is possible because the Reel Handler grips the core (centre hole). Reel Handlers also come in models for lifting up to 80, 140 or 200 kg. We also have models than can grip and tip electrically. To learn more about them, ask for further details in the comment field after selecting “Please send material”.
