BOOM (DVB1)
Product number
impact_130m_fc1-500-75ds_dvb1

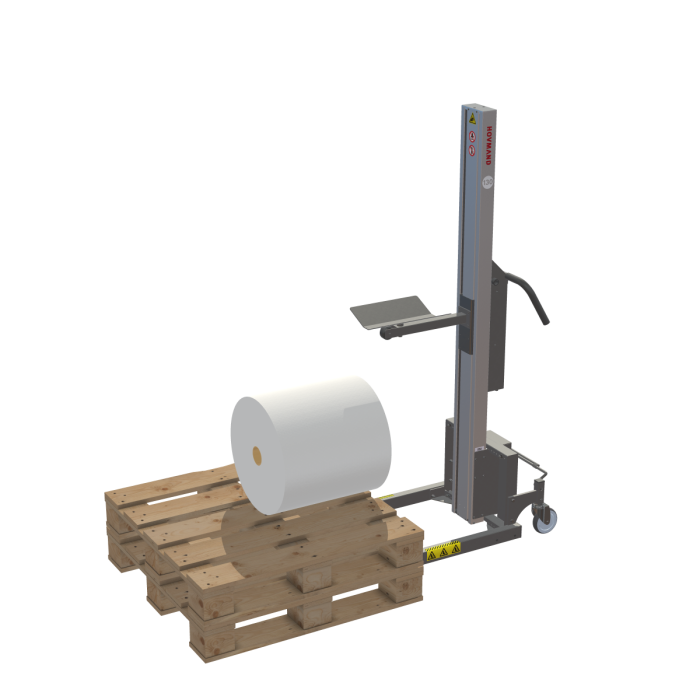

The boom is a horizontal tube that lifts the reel. A V-block is a V-shaped plate that lifts under the reel and holds it in place. The lifter is highly flexible because it has two tools in one lifter. The boom is a tool that lifts the reel by the core and the V-block is a tool that lifts under the reel and can rotate it.
Specification
Tool type:
Boom
Lifting capacity:
60.00 kg
Lifts per charge:
80
Lifting height:
1,874.00 mm
Total width:
494.00 mm
Total height:
1,917.00 mm
Total length:
897.00 mm
Details
Does not pick up reels standing in a vertical position (this requires you to lay the reel down manually).The lifter depicted here lifts up to 60 kg. If you need to lift more than this, write this in the comment field after selecting “Please send material”.
